China Top 5 Water Filters Manufacturer & Supplier. YUNDA Produce All Popular Refrigerator Water Filter Models. Factory Sales Directly. High Quality Price Ratio.
Compatible Modes: •Samsung: DA2900003B DA2900003A ●Compatibility guaranteed! Free return shipping and 100% money back if there are any issues.
RWF0200A
Refrigerator Water Filtration

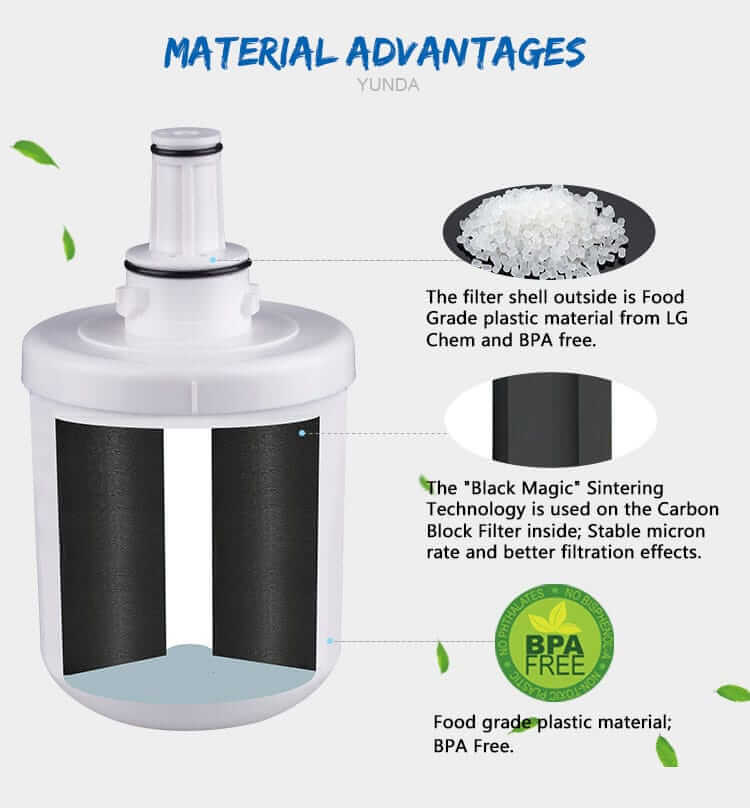

NSF Coconut Shell Activated Carbon
NSF, WQA, IAPMO
May you like
Compatible with Samsung Refrigerator Water Filter DA2900003B, DA2900003A.
The filter will remove the following impurities from your water: Chlorine Taste and odour, Particulates, Mercury, Lead, Cyst, Carbofuran, P-Dichlorobenzene, Asbestos, Benzene, Turbidity. The system has been tested according to NSF/ANSI standards 42 for the reduction of substances listed.
Basic Parameters
|
Model NO |
RWF0200A |
|
Unit/Case |
20 Units |
|
Case Weight |
16.9 pounds |
|
Case Dimension |
18.7" x 8.1" x 14.6" |
|
Cases/Pallet |
42Cases (Based on 39.4" x39.4", 43.3" x43.3" pallet) |
|
Pallet Weight |
739.2pounds |
|
Pallet Dimension |
42.9" x 429" x 57.9" |
|
Individual Filter Dimension |
OD: 3 1/5" Length: 6 1/5" |
|
Individual Unit Weight With Box |
12.5oz |
|
Individual Unit Box Dimension |
3.4" x 3.4" x 6.7" |
|
OPERATING TEMP |
34-100℉ |
|
OPERATING PRESSURE |
30-120psi |
|
FLOW RATE |
0.5-1 GPM |
|
FILTRATION LIFE: |
6 months/1500G(Depends on water quality and level of contaminants) |
Installation Instruction
1. On models without a replacement indicator light, apply the month sticker to the new cartridge and mark your calendar to remind you to replace the filter after six months.
2. Remove old filter cartridge by grasping and turning to the left about 1/4 turn.
3. Remove the protective cap from the end of the new cartridge.
4. Insert the new filter into the filter head.
5. Turn the cartridge 1/4 turn to the right to lock it into place
6. Run water from the dispenser for 6-8minutes (about 3-4 gallons) to clear the system and prevent sputtering.
7. On models with a replacement indicator light, press and hold the RESET WATER FILTER PAD on the dispenser.
